服务雪崩

[复制链接]
发表于 2024-11-23 17:30:05 | 显示全部楼层 |阅读模式

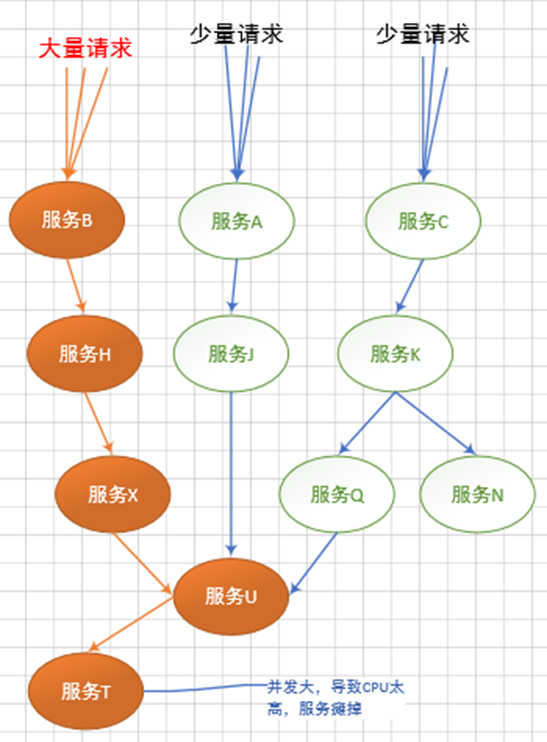

1.1 服务雪崩简介，解决

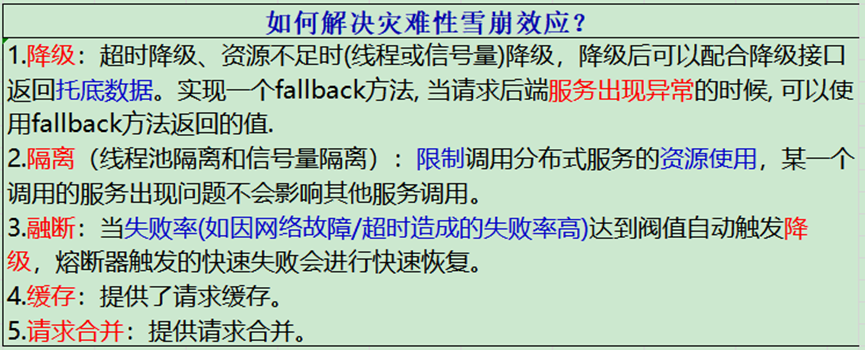

雪崩解决：




服务降级

serivce

package com.agan.eureka.consumer.service;


import java.util.ArrayList;

import java.util.List;


import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.cloud.client.ServiceInstance;

import org.springframework.cloud.client.loadbalancer.LoadBalancerClient;

import org.springframework.core.ParameterizedTypeReference;

import org.springframework.http.HttpMethod;

import org.springframework.http.ResponseEntity;

import org.springframework.stereotype.Service;

import org.springframework.web.client.RestTemplate;


import com.agan.eureka.consumer.domain.Product;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixProperty;

import com.netflix.hystrix.contrib.javanica.conf.HystrixPropertiesManager;

/\*\*

 \* @author 阿甘 http://study.163.com/instructor/1016671292.htm

 \* @version 1.0

 \*/

@Service

public class ProductService {

   @Autowired

   private LoadBalancerClient loadBalancerClient;//ribbon 负载均衡客户端



   @HystrixCommand(fallbackMethod = "fallback",

         commandProperties = {

            //默认10秒;如果并发数达到该设置值，请求会被拒绝和抛出异常并且fallback不会被调用。

            @HystrixProperty(name=HystrixPropertiesManager.FALLBACK\_ISOLATION\_SEMAPHORE\_MAX\_CONCURRENT\_REQUESTS, value="15")

          })

   public List<Product> listProduct(){

      ServiceInstance si=loadBalancerClient.choose("e-book-product");

      StringBuffer sb=new StringBuffer("");

      sb.append("http://");

      sb.append(si.getHost());

      sb.append(":");

      sb.append(si.getPort());

      sb.append("/product/list");

      System.out.println(sb.toString());



      RestTemplate rt=new RestTemplate();

      ParameterizedTypeReference<List<Product>> typeRef

                =new ParameterizedTypeReference<List<Product>>(){};

      ResponseEntity<List<Product>>  resp=rt.exchange(sb.toString(), HttpMethod.GET, null, typeRef) ;

      List<Product> plist=resp.getBody();

      return plist;

   }



   public List<Product> fallback(){

      List<Product> list=new ArrayList<Product>();

      list.add(new Product(-1,"fallback"));

      return list;

   }


}

启动类

package com.agan.eureka.consumer;


import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;

import org.springframework.cloud.netflix.eureka.EnableEurekaClient;


/\*\*

 \* @author 阿甘 http://study.163.com/instructor/1016671292.htm

 \* @version 1.0

 \*/

@EnableCircuitBreaker //开启服务降级 断路器

@EnableEurekaClient

@SpringBootApplication

public class ConsumerApplication {


   public static void main(String[] args) {

      SpringApplication.run(ConsumerApplication.class, args);

   }

}

1.1.1 重要补充

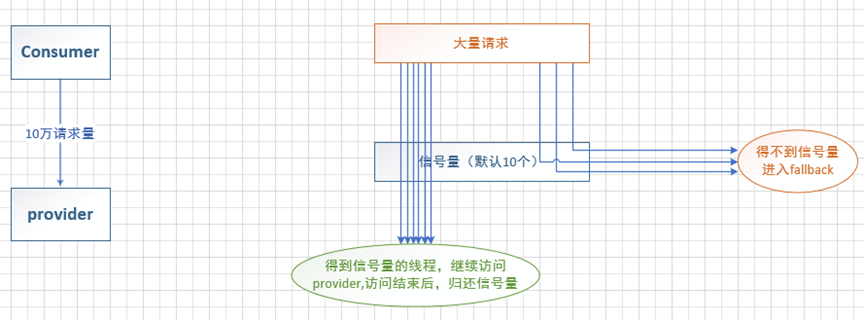

达到最大并发度不会调fallback

（1）方法抛出非HystrixBadRequestException：请求参数错误

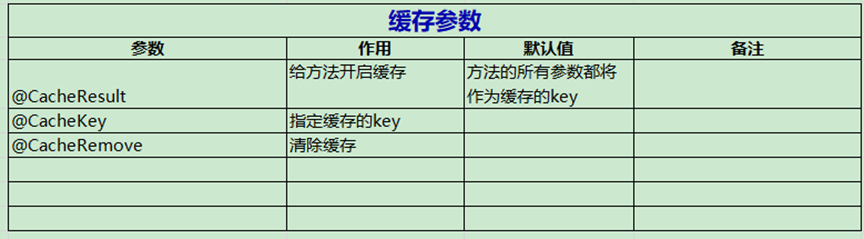

1.1 请求缓存：e-book-consumer-hystrix-ribbon-cache

hystrix​缺点：

仅支持本地缓存

不支持集群，缓存无法同步

不支持第三方缓存容器（redis）

改用spring cache

springcache

spring.application.name=e-book-consumer-hystrix

server.port=9000



eureka.client.serviceUrl.defaultZone=http://user:123456@eureka1:8761/eureka/,http://user:123456@eureka2:8761/eureka/


#默认是hostname 注册，改成IP 注册

eureka.instance.perferIpAddress=true


#程序启动时创建的缓存名称

#spring.cache.cache-names=com.agan.book

# Redis数据索引（默认为0）

spring.redis.database=1

#Redis服务器地址

spring.redis.host=192.168.48.38

#Redis服务器连接端口

spring.redis.port=6379

#Redis服务器连接密码（默认为空）

spring.redis.password=

#连接池最大连接数（负值表示没有限制）

spring.redis.pool.max-active=100

#连接池最大阻塞等待时间（负值表示没有限制）

spring.redis.pool.max-wait=3000

#连接池最大空闭连接数

spring.redis.pool.max-idle=200

#连接汉最小空闲连接数

spring.redis.pool.min-idle=50

#连接超时时间（毫秒）

spring.redis.pool.timeout=600

service层

package com.agan.eureka.consumer.service;


import java.util.ArrayList;

import java.util.List;


import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.cache.annotation.CacheConfig;

import org.springframework.cache.annotation.CacheEvict;

import org.springframework.cache.annotation.Cacheable;

import org.springframework.cloud.client.ServiceInstance;

import org.springframework.cloud.client.loadbalancer.LoadBalancerClient;

import org.springframework.core.ParameterizedTypeReference;

import org.springframework.http.HttpMethod;

import org.springframework.http.ResponseEntity;

import org.springframework.stereotype.Service;

import org.springframework.web.client.RestTemplate;


import com.agan.eureka.consumer.domain.Product;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixProperty;

import com.netflix.hystrix.contrib.javanica.conf.HystrixPropertiesManager;

/\*\*

 \* @author 阿甘 http://study.163.com/instructor/1016671292.htm

 \* @version 1.0

 \*/

@CacheConfig(cacheNames={"com.agan.book"})

@Service

public class ProductService {

   @Autowired

   private LoadBalancerClient loadBalancerClient;//ribbon 负载均衡客户端



   @HystrixCommand(fallbackMethod = "fallback",

         commandProperties = {

            //默认10秒;如果并发数达到该设置值，请求会被拒绝和抛出异常并且fallback不会被调用。

            @HystrixProperty(name=HystrixPropertiesManager.FALLBACK\_ISOLATION\_SEMAPHORE\_MAX\_CONCURRENT\_REQUESTS, value="15")

          })

   public List<Product> listProduct(){

      ServiceInstance si=loadBalancerClient.choose("e-book-product");

      StringBuffer sb=new StringBuffer("");

      sb.append("http://");

      sb.append(si.getHost());

      sb.append(":");

      sb.append(si.getPort());

      sb.append("/product/list");

      System.out.println(sb.toString());



      RestTemplate rt=new RestTemplate();

      ParameterizedTypeReference<List<Product>> typeRef

                =new ParameterizedTypeReference<List<Product>>(){};

      ResponseEntity<List<Product>>  resp=rt.exchange(sb.toString(), HttpMethod.GET, null, typeRef) ;

      List<Product> plist=resp.getBody();

      return plist;

   }



   public List<Product> fallback(){

      List<Product> list=new ArrayList<Product>();

      list.add(new Product(-1,"fallback"));

      return list;

   }





   @Cacheable(key="'product' + #id")

   public Product get(Integer id){

      System.out.println("=========get========="+id);

      return new Product(id,"漫谈spring cloud分布式服务架构（微服务进阶篇）");

   }



   @CacheEvict(key="'product' + #id")

   public void del(Integer id){

      System.out.println("=========del========="+id);

   }



}

启动类

import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.cache.annotation.EnableCaching;

import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;

import org.springframework.cloud.netflix.eureka.EnableEurekaClient;


@EnableCaching

@EnableCircuitBreaker //开启服务降级 断路器

@EnableEurekaClient

@SpringBootApplication

public class ConsumerApplication {


   public static void main(String[] args) {

      SpringApplication.run(ConsumerApplication.class, args);

   }

}

1.1.1 重要参数


请求合并：




业务层

package com.agan.eureka.consumer.service;


import java.util.ArrayList;

import java.util.List;

import java.util.concurrent.Future;


import org.springframework.stereotype.Service;


import com.agan.eureka.consumer.domain.Product;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixCollapser;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixProperty;

/\*\*

 \* @author 阿甘 http://study.163.com/instructor/1016671292.htm

 \* @version 1.0

 \*/

@Service

public class ProductService {



   //利用hystrix合并请求

    @HystrixCollapser(batchMethod = "batchProduct", scope = com.netflix.hystrix.HystrixCollapser.Scope.GLOBAL,

          collapserProperties = {

          //请求时间间隔在50ms之内的请求会被合并为一个请求

            @HystrixProperty(name = "timerDelayInMilliseconds", value = "20"),

            //设置触发批处理执行之前，在批处理中允许的最大请求数。

            @HystrixProperty(name = "maxRequestsInBatch", value = "200"),

    })

   public ​**Future**​<Product> getProduct(Integer id){

      System.out.println("------------"+id+"-------------");

      return null;

   }



   @HystrixCommand

   public List<Product> batchProduct(List<Integer> ids){

      for(Integer id:ids){

         System.out.println(id);

      }



      List<Product> list=new ArrayList<Product>();

      list.add(new Product(1,"漫谈spring cloud与spring boot基础架构（微服务基础篇）"));

      list.add(new Product(2,"漫谈spring cloud分布式服务架构（微服务进阶篇）"));

      list.add(new Product(3,"漫谈spring cloud 与docker架构部署（微服务高级篇）"));

      list.add(new Product(4,"444444444444444444"));

      return  list;

   }

}****

启动类

package com.agan.eureka.consumer;


import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;

import org.springframework.cloud.netflix.eureka.EnableEurekaClient;



@EnableCircuitBreaker //开启服务降级 断路器

@EnableEurekaClient

@SpringBootApplication

public class ConsumerApplication {


   public static void main(String[] args) {

      SpringApplication.run(ConsumerApplication.class, args);

   }

}

效果

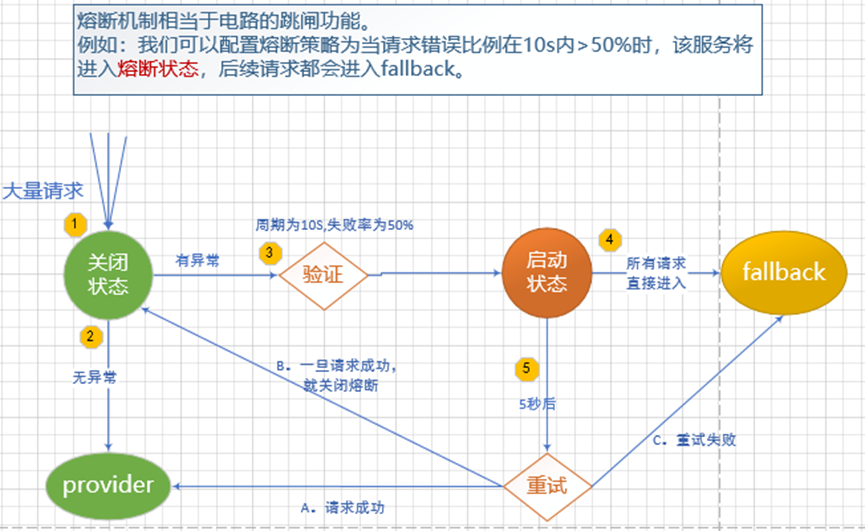

1.1 服务熔断：e-book-consumer-hystrix-ribbon-breaker



业务层

package com.agan.eureka.consumer.service;


import java.util.ArrayList;

import java.util.List;


import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.cloud.client.ServiceInstance;

import org.springframework.cloud.client.loadbalancer.LoadBalancerClient;

import org.springframework.core.ParameterizedTypeReference;

import org.springframework.http.HttpMethod;

import org.springframework.http.ResponseEntity;

import org.springframework.stereotype.Service;

import org.springframework.web.client.RestTemplate;


import com.agan.eureka.consumer.domain.Product;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixProperty;

import com.netflix.hystrix.contrib.javanica.conf.HystrixPropertiesManager;

/\*\*

 \* @author 阿甘 http://study.163.com/instructor/1016671292.htm

 \* @version 1.0

 \*/

@Service

public class ProductService {

   @Autowired

       private LoadBalancerClient loadBalancerClient;//ribbon 负载均衡客户端



       @HystrixCommand(fallbackMethod = "fallback",

                     commandProperties = {

                       //默认20个;10s内请求数大于20个时就启动熔断器，当请求符合熔断条件时将触发getFallback()。

                    @HystrixProperty(name=HystrixPropertiesManager.CIRCUIT\_BREAKER\_REQUEST\_VOLUME\_THRESHOLD, value="10"),

                    //请求错误率大于50%时就熔断，然后for循环发起请求，当请求符合熔断条件时将触发getFallback()。

                    @HystrixProperty(name=HystrixPropertiesManager.CIRCUIT\_BREAKER\_ERROR\_THRESHOLD\_PERCENTAGE, value="50"),

                    //默认5秒;熔断多少秒后去尝试请求

                    @HystrixProperty(name=HystrixPropertiesManager.CIRCUIT\_BREAKER\_SLEEP\_WINDOW\_IN\_MILLISECONDS, value="5000"),

                  })

   public List<Product> listProduct(int n){

      System.out.println(n);

      if(n==1){

         throw new RuntimeException();

      }

      ServiceInstance si=loadBalancerClient.choose("e-book-product");

      StringBuffer sb=new StringBuffer("");

      sb.append("http://");

      sb.append(si.getHost());

      sb.append(":");

      sb.append(si.getPort());

      sb.append("/product/list");

      System.out.println(sb.toString());



      RestTemplate rt=new RestTemplate();

      ParameterizedTypeReference<List<Product>> typeRef

                =new ParameterizedTypeReference<List<Product>>(){};

      ResponseEntity<List<Product>>  resp=rt.exchange(sb.toString(), HttpMethod.GET, null, typeRef) ;

      List<Product> plist=resp.getBody();

      return plist;

   }



   public List<Product> fallback(int n){

      List<Product> list=new ArrayList<Product>();

      list.add(new Product(-1,"fallback"));

      return list;

   }

启动类

package com.agan.eureka.consumer;


import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;

import org.springframework.cloud.netflix.eureka.EnableEurekaClient;



@EnableCircuitBreaker //开启服务降级 断路器

@EnableEurekaClient

@SpringBootApplication

public class ConsumerApplication {


   public static void main(String[] args) {

      SpringApplication.run(ConsumerApplication.class, args);

   }

}

1.1.1 模拟错误率

v image.png

一直刷新页面，也不会打印1，说明5秒内不再重试，每5秒一次


线程池隔离

不使用线程池隔离会互相影响 v image.png


使用线程池隔离，互不影响




业务层

package com.agan.eureka.consumer.service;


import java.util.ArrayList;

import java.util.List;


import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.cloud.client.ServiceInstance;

import org.springframework.cloud.client.loadbalancer.LoadBalancerClient;

import org.springframework.core.ParameterizedTypeReference;

import org.springframework.http.HttpMethod;

import org.springframework.http.ResponseEntity;

import org.springframework.stereotype.Service;

import org.springframework.web.client.RestTemplate;


import com.agan.eureka.consumer.domain.Product;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixProperty;

import com.netflix.hystrix.contrib.javanica.conf.HystrixPropertiesManager;

/\*\*

 \* @author 阿甘

 \*/

@Service

public class ProductService {

   @Autowired

   private LoadBalancerClient loadBalancerClient;

//ribbon 负载均衡客户端



   @HystrixCommand(groupKey="e-book-product", commandKey = "listProduct",

          threadPoolKey="e-book-product",

                threadPoolProperties = {

                  @HystrixProperty(name = "coreSize", value = "30"),//线程池大小

                  @HystrixProperty(name = "maxQueueSize", value = "100"),//最大队列长度

                  @HystrixProperty(name = "keepAliveTimeMinutes", value = "2"),//线程存活时间

                  @HystrixProperty(name = "queueSizeRejectionThreshold", value = "15")//拒绝请求

          },

          fallbackMethod = "fallback")

   public List<Product> listProduct(){

      ServiceInstance si=loadBalancerClient.choose("e-book-product");

      StringBuffer sb=new StringBuffer("");

      sb.append("http://");

      sb.append(si.getHost());

      sb.append(":");

      sb.append(si.getPort());

      sb.append("/product/list");

      System.out.println(sb.toString());



      RestTemplate rt=new RestTemplate();

      ParameterizedTypeReference<List<Product>> typeRef

                =new ParameterizedTypeReference<List<Product>>(){};

      ResponseEntity<List<Product>>  resp=rt.exchange(sb.toString(), HttpMethod.GET, null, typeRef) ;

      List<Product> plist=resp.getBody();

      return plist;

   }



   public List<Product> fallback(){

      List<Product> list=new ArrayList<Product>();

      list.add(new Product(-1,"fallback"));

      return list;

   }

}

启动类

package com.agan.eureka.consumer;


import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;

import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

import org.springframework.cloud.netflix.hystrix.EnableHystrix;

import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;


/\*\*

 \* @author 阿甘 http://study.163.com/instructor/1016671292.htm

 \* @version 1.0

 \*/

@EnableCircuitBreaker //开启服务降级 断路器

@EnableEurekaClient

@SpringBootApplication


@EnableHystrix

@EnableHystrixDashboard

public class ConsumerApplication {


   public static void main(String[] args) {

      SpringApplication.run(ConsumerApplication.class, args);

   }

}

1.1 信号量隔离：e-book-consumer-hystrix-ribbon-semaphore



package com.agan.eureka.consumer.service;


import java.util.ArrayList;

import java.util.List;


import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.cloud.client.ServiceInstance;

import org.springframework.cloud.client.loadbalancer.LoadBalancerClient;

import org.springframework.core.ParameterizedTypeReference;

import org.springframework.http.HttpMethod;

import org.springframework.http.ResponseEntity;

import org.springframework.stereotype.Service;

import org.springframework.web.client.RestTemplate;


import com.agan.eureka.consumer.domain.Product;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixProperty;

import com.netflix.hystrix.contrib.javanica.conf.HystrixPropertiesManager;

/\*\*

 \* @author 阿甘 http://study.163.com/instructor/1016671292.htm

 \* @version 1.0

 \*/

@Service

public class ProductService {

   @Autowired         //ribbon 负载均衡客户端

   private LoadBalancerClient loadBalancerClient;



   @HystrixCommand(fallbackMethod = "fallback",

         commandProperties = {

            @HystrixProperty(name=HystrixPropertiesManager.EXECUTION\_ISOLATION\_STRATEGY, value="SEMAPHORE"),// 信号量 隔离

            @HystrixProperty(name=HystrixPropertiesManager.EXECUTION\_ISOLATION\_SEMAPHORE\_MAX\_CONCURRENT\_REQUESTS, value="100")//信号量最大并发度

          })

   public List<Product> listProduct(){

      ServiceInstance si=loadBalancerClient.choose("e-book-product");

      StringBuffer sb=new StringBuffer("");

      sb.append("http://");

      sb.append(si.getHost());

      sb.append(":");

      sb.append(si.getPort());

      sb.append("/product/list");

      System.out.println(sb.toString());



      RestTemplate rt=new RestTemplate();

      ParameterizedTypeReference<List<Product>> typeRef

                =new ParameterizedTypeReference<List<Product>>(){};

      ResponseEntity<List<Product>>  resp=rt.exchange(sb.toString(), HttpMethod.GET, null, typeRef) ;

      List<Product> plist=resp.getBody();

      return plist;

   }



   public List<Product> fallback(){

      List<Product> list=new ArrayList<Product>();

      list.add(new Product(-1,"fallback"));

      return list;

   }

}

1.1 线程池隔离和信号量隔离区别，使用场景



Feign服务降级：

spring.application.name=e-book-consumer-hystrix-feign-fallback
server.port=8090

eureka.client.serviceUrl.defaultZone=http://user:123456@eureka1:8761/eureka/,http://user:123456@eureka2:8761/eureka/

#默认是hostname 注册，改成IP 注册

eureka.instance.perferIpAddress=true

#Feign默认是不开启Hystrix

feign.hystrix.enabled=true

业务层

package com.agan.book.consumer.service;


import java.util.List;


import org.springframework.cloud.netflix.feign.FeignClient;

import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RequestMethod;


import com.agan.book.consumer.hystrix.ProductServiceFallback;

import com.agan.book.product.domain.Product;

import com.agan.book.product.facade.ProductFacade;

/\*\*

 \* @author 阿甘

 \* @see http://study.163.com/instructor/1016671292.htm

 \* @version 1.0

 \*/

@FeignClient(name="e-book-product",fallback=ProductServiceFallback.class)

public interface ProductService {



   @RequestMapping(value="product/list",method=RequestMethod.GET)

   public List<Product> listProduct();

}

1.1.1 hystrix：ProductServiceFallback

package com.agan.book.consumer.hystrix;


import java.util.ArrayList;

import java.util.List;


import org.springframework.stereotype.Component;


import com.agan.book.consumer.service.ProductService;

import com.agan.book.product.domain.Product;


@Component

public class ProductServiceFallback implements ProductService{


   @Override

   public List<Product> listProduct() {

      List<Product>  list=new ArrayList<Product>();

      list.add(new Product(-1,"fallback"));

      return list;

   }


}

测试效果


服务降级本身就是在消费者客户端配置的，所以本案例业务层没有继承facade包下生产者的api

1.1 Feign降级后异常记录：e-book-consumer-hystrix-feign-factory

在fallback类中输出日志就可以了

package com.agan.book.consumer.hystrix;


import java.util.ArrayList;

import java.util.List;


import org.slf4j.Logger;

import org.slf4j.LoggerFactory;

import org.springframework.stereotype.Component;


import com.agan.book.consumer.service.ProductService;

import com.agan.book.product.domain.Product;


import feign.hystrix.FallbackFactory;


@Component

public class ProductServiceFallbackFactory implements FallbackFactory<ProductService>{


   private Logger logger=LoggerFactory.getLogger(ProductServiceFallbackFactory.class);




   @Override

   public ProductService create(final Throwable arg0) {

      return new ProductService(){

         @Override

         public List<Product> listProduct() {

            logger.warn("fallback exception:",arg0);

            List<Product>  list=new ArrayList<Product>();

            list.add(new Product(-1,"fallback"));

            return list;

         }



      };

   }


}

1.1 可视化数据监控dashboard:e-book-consumer-hystrix-dashboard

pom

<?xml version="1.0"?>

<project

   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"

   xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

   <modelVersion>4.0.0</modelVersion>

   <parent>

      <groupId>com.agan.springcloud</groupId>

      <artifactId>e-book-consumer-hystrix</artifactId>

      <version>0.0.1-SNAPSHOT</version>

   </parent>

<artifactId>e-book-consumer-hystrix-dashboard</artifactId>

   <name>eureka-consumer</name>

   <url>http://maven.apache.org</url>

   <properties>

      <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>

   </properties>

   <dependencies>


      <dependency>

         <groupId>org.springframework.boot</groupId>

         <artifactId>spring-boot-starter-web</artifactId>

      </dependency>

      <dependency>

            <groupId>org.springframework.cloud</groupId>

            <artifactId>spring-cloud-starter-hystrix</artifactId>

        </dependency>







        <dependency>

            <groupId>org.springframework.boot</groupId>

            <artifactId>spring-boot-starter-actuator</artifactId>

        </dependency>


        <dependency>

            <groupId>org.springframework.cloud</groupId>

            <artifactId>spring-cloud-starter-hystrix-dashboard</artifactId>

        </dependency>



   </dependencies>



   <build>

      <plugins>

         <plugin>

            <groupId>org.springframework.boot</groupId>

            <artifactId>spring-boot-maven-plugin</artifactId>

         </plugin>

      </plugins>

   </build>

</project>

1.1.1 Resource:application.properties和logback.xml

spring.application.name=e-book-hystrix-dashboard

server.port=1001



eureka.client.serviceUrl.defaultZone=http://user:123456@eureka1:8761/eureka/,http://user:123456@eureka2:8761/eureka/


#默认是hostname 注册，改成IP 注册

eureka.instance.perferIpAddress=true

1.1.1 启动类

package com.agan.hystrix;


import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;

import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

import org.springframework.cloud.netflix.hystrix.EnableHystrix;

import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;



@EnableCircuitBreaker //开启服务降级 断路器

@EnableEurekaClient

@SpringBootApplication


@EnableHystrix

@EnableHystrixDashboard

public class HystrixDashboardApplication {


   public static void main(String[] args) {

      SpringApplication.run(HystrixDashboardApplication.class, args);

   }

}

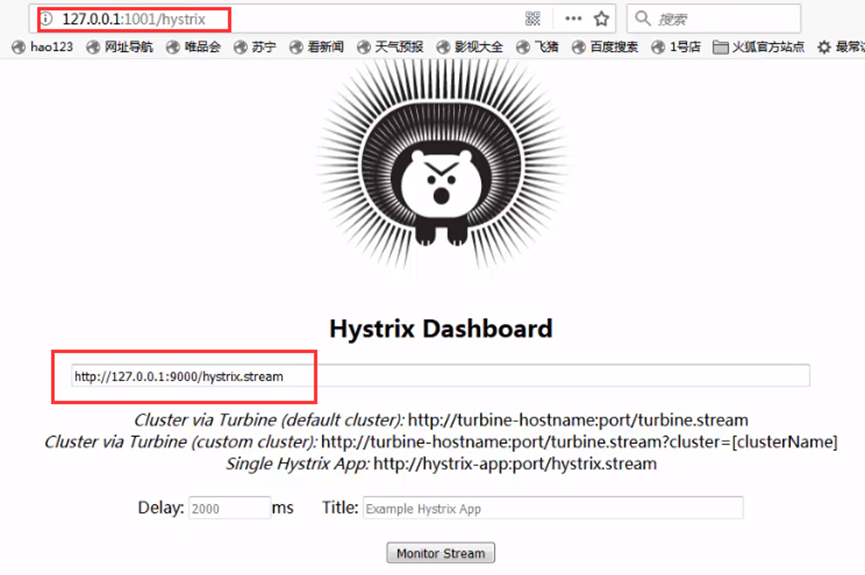

1.1.1 测试，启动8.6——ribbon-thhredpool



启动本项目


不断刷新页面可看到变化


1.1.1 图解


1.1 集群监控数据：e-book-consumer-hystrix-turbine


1.1.1 pom.xml

<?xml version="1.0"?>

<project

   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"

   xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

   <modelVersion>4.0.0</modelVersion>

   <parent>

      <groupId>com.agan.springcloud</groupId>

      <artifactId>e-book-consumer-hystrix</artifactId>

      <version>0.0.1-SNAPSHOT</version>

   </parent>

   <artifactId>e-book-consumer-hystrix-turbine</artifactId>

   <name>eureka-consumer</name>

   <url>http://maven.apache.org</url>

   <properties>

      <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>

   </properties>

   <dependencies>


      <dependency>

         <groupId>org.springframework.boot</groupId>

         <artifactId>spring-boot-starter-web</artifactId>

      </dependency>

      <dependency>

            <groupId>org.springframework.cloud</groupId>

            <artifactId>spring-cloud-starter-hystrix</artifactId>

        </dependency>







        <dependency>

            <groupId>org.springframework.boot</groupId>

            <artifactId>spring-boot-starter-actuator</artifactId>

        </dependency>


        <dependency>

            <groupId>org.springframework.cloud</groupId>

            <artifactId>spring-cloud-starter-hystrix-dashboard</artifactId>

        </dependency>



        <dependency>

           <groupId>org.springframework.cloud</groupId>

           <artifactId>spring-cloud-starter-turbine</artifactId>

       </dependency>

       <dependency>

           <groupId>org.springframework.cloud</groupId>

           <artifactId>spring-cloud-netflix-turbine</artifactId>

       </dependency>






   </dependencies>



   <build>

      <plugins>

         <plugin>

            <groupId>org.springframework.boot</groupId>

            <artifactId>spring-boot-maven-plugin</artifactId>

         </plugin>

      </plugins>

   </build>

</project>

1.1.1 Resource:application.properties和logback.xml

spring.application.name=e-book-hystrix-dashboard

server.port=1002



eureka.client.serviceUrl.defaultZone=http://user:123456@eureka1:8761/eureka/,http://user:123456@eureka2:8761/eureka/


#默认是hostname 注册，改成IP 注册

eureka.instance.perferIpAddress=true



#---------------------------------------turbine--------------------------

#配置Eureka中的serviceId列表，表明监控哪些服务

turbine.appConfig=

e-book-consumer-hystrix-ribbon-threadpool,

e-book-consumer-hystrix-feign-fallback

#指定聚合哪些集群，多个使用","分割，默认为default。可使用http://.../turbine.stream?cluster={clusterConfig之一}访问

turbine.aggregator.clusterConfig= default

# 1. clusterNameExpression指定集群名称，默认表达式appName；此时：turbine.aggregator.clusterConfig需要配置想要监控的应用名称；

# 2. 当clusterNameExpression: default时，turbine.aggregator.clusterConfig可以不写，因为默认就是default；

# 3. 当clusterNameExpression: metadata['cluster']时，假设想要监控的应用配置了eureka.instance.metadata-map.cluster: ABC，

#          则需要配置，同时turbine.aggregator.clusterConfig: ABC


turbine.clusterNameExpression="default"

1.1.1 启动类

package com.agan.hystrix;


import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;

import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

import org.springframework.cloud.netflix.hystrix.EnableHystrix;

import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;

import org.springframework.cloud.netflix.turbine.EnableTurbine;



/\*\*

 \* @author 阿甘 http://study.163.com/instructor/1016671292.htm

 \* @version 1.0

 \*/

@SpringBootApplication

@EnableTurbine

public class HystrixTurbineApplication {


   public static void main(String[] args) {

      SpringApplication.run(HystrixTurbineApplication.class, args);

   }

}

1.1.1 启动7.2生产者，8.12——turbine，8.11-dashboard

1.1.1 启动8.9——feign-fallback


image.png 测试效果



1.1.1 启动8.6——ribbon-threadpool



1.1.1 测试




1.1.1 Linux另外启动8.6——ribbon-threadpool



1.1.1 测试效果


不使用turbine，需要一个个生产者-消费者添加，数据是独立的，不能整合到一块，

上图我们可以看到，ribbon-threadpool集群有俩消费者，数据在一起，

feign-fallback只有一个消费者，单独

1.1 RabbitMQ收集监控数据：


1.1.1 e-book-consumer-hystrix-ribbon-threadpool-mq

1.1.1.1 pom.xml

<?xml version="1.0"?>

<project

   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"

   xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

   <modelVersion>4.0.0</modelVersion>

   <parent>

      <groupId>com.agan.springcloud</groupId>

      <artifactId>e-book-consumer-hystrix</artifactId>

      <version>0.0.1-SNAPSHOT</version>

   </parent>

   <artifactId>e-book-consumer-hystrix-ribbon-threadpool-mq</artifactId>

   <name>eureka-consumer</name>

   <url>http://maven.apache.org</url>

   <properties>

      <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>

   </properties>

   <dependencies>


      <dependency>

         <groupId>org.springframework.boot</groupId>

         <artifactId>spring-boot-starter-web</artifactId>

      </dependency>

      <dependency>

            <groupId>org.springframework.cloud</groupId>

            <artifactId>spring-cloud-starter-hystrix</artifactId>

        </dependency>







        <dependency>

            <groupId>org.springframework.boot</groupId>

            <artifactId>spring-boot-starter-actuator</artifactId>

        </dependency>


        <dependency>

            <groupId>org.springframework.cloud</groupId>

            <artifactId>spring-cloud-starter-hystrix-dashboard</artifactId>

        </dependency>



    <dependency>

      <groupId>org.springframework.cloud</groupId>

      <artifactId>spring-cloud-netflix-hystrix-stream</artifactId>

    </dependency>

    <dependency>

      <groupId>org.springframework.cloud</groupId>

      <artifactId>spring-cloud-starter-stream-rabbit</artifactId>

    </dependency>



   </dependencies>



   <build>

      <plugins>

         <plugin>

            <groupId>org.springframework.boot</groupId>

            <artifactId>spring-boot-maven-plugin</artifactId>

         </plugin>

      </plugins>

   </build>

</project>

1.1.1.1 Resource:application.properties和logback.xml

spring.application.name=e-book-consumer-hystrix-ribbon-threadpool

server.port=9000



eureka.client.serviceUrl.defaultZone=http://user:123456@eureka1:8761/eureka/,http://user:123456@eureka2:8761/eureka/


#默认是hostname 注册，改成IP 注册

eureka.instance.perferIpAddress=true



spring.rabbitmq.host=192.168.10.17

spring.rabbitmq.port=5672

spring.rabbitmq.username=test

spring.rabbitmq.password=123456
spring.rabbitmq.virtualHost=/

1.1.1.1 控制层ProductController

package com.agan.eureka.consumer.controller;


import java.util.List;


import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RequestMethod;

import org.springframework.web.bind.annotation.RestController;


import com.agan.eureka.consumer.domain.Product;

import com.agan.eureka.consumer.service.ProductService;


/\*\*

 \* @author 阿甘 http://study.163.com/instructor/1016671292.htm

 \* @version 1.0

 \*/

@RestController

public class ProductController {

   @Autowired

   private ProductService productService;


   @RequestMapping(value = "list", method = RequestMethod.GET)

   public List<Product> listProduct() {

      List<Product> list = this.productService.listProduct();

      return list;

   }

}

1.1.1.1 业务层ProductService

本帖子中包含更多资源

您需要 登录 才可以下载或查看，没有账号？立即注册

×
回复

举报

返回列表

Kyle
+ 我要发帖

GMT+8, 2025-4-20 17:37 , Processed in 0.077074 second(s), 35 queries Archiver|手机版|小黑屋|Attic ( 京ICP备2020048627号 )

快速回复 返回顶部 返回列表
